Strategic Azure VNet Regional Selection for Compliance, Performance, and Resiliency

AMJ Cloud Technologies partnered with a multinational fintech company operating in Europe and North America to modernize its cloud infrastructure on Microsoft Azure. This case study showcases how we strategically deployed Azure Virtual Networks (VNets) to meet compliance, performance, and resiliency requirements for customer-facing apps, transaction processing systems, and analytics platforms.

Situation

The client, a fast-growing fintech company, was expanding its Azure presence to support critical workloads across multiple regions. With operations subject to stringent regulations like GDPR in Europe and PCI DSS globally, the client needed a robust networking strategy to ensure data sovereignty, low latency for global users, and high availability for mission-critical systems.

Challenge

The client faced several challenges in deploying their Azure VNets:

• Compliance Complexity: Ensuring data locality and meeting legal requirements for data sovereignty across jurisdictions.
• User Experience: Maintaining low latency for global users accessing web applications and financial APIs.
• Operational Resiliency: Designing an architecture to meet internal service level agreements (SLAs) for uptime and fault tolerance.

Solution: Region-Aware VNet Architecture

We designed a regionally optimized VNet strategy based on three pillars: compliance alignment, proximity to users, and architectural resiliency. The solution was implemented over a six-week period by a team of cloud architects and network engineers.

Action

To address the challenges, we implemented the following components:

• Regulatory Compliance Mapping:

  • Collaborated with the client's compliance and legal teams to map regulatory requirements.
  • Deployed VNets for European customer data in "West Europe" and "North Europe" Azure regions to align with GDPR.
  • Isolated PCI-sensitive workloads in "East US 2", leveraging Azure’s compliance offerings for financial services.

• Performance Optimization via Geographic Placement:

  • Deployed analytics and customer portal workloads in regions close to major user hubs.
  • Placed UK-based customer experience systems in "UK South" to reduce latency for British users.
  • Positioned North American systems in "Central US" and "East US" for faster API response times for U.S. clients.

• Resiliency with Availability Zones and Region Pairs:

  • Leveraged Availability Zones within each primary region for intra-region fault tolerance.
  • Utilized Azure’s region pair strategy (e.g., pairing "North Europe" with "West Europe") for disaster recovery and failover capabilities.

• Policy and Monitoring Integration:

  • Implemented Azure Policy to enforce compliance requirements across VNet deployments.
  • Used Azure Monitor and Network Watcher to track performance metrics and detect anomalies in real time.

• Infrastructure as Code:

  • Developed custom ARM templates to automate and standardize VNet deployments, ensuring consistency and repeatability.

• Testing and Validation:

  • Conducted performance tests to verify latency improvements and compliance adherence.
  • Monitored uptime metrics to confirm alignment with the client’s 99.99% SLA.

Results

The strategic VNet implementation delivered measurable outcomes:

• Compliance Achieved: Region-specific VNet deployments ensured adherence to GDPR and PCI DSS, enabling the client to pass regulatory audits without remediation.
• Improved Application Performance: End-users experienced up to 40% lower latency, particularly in the UK and U.S. regions, due to optimized VNet placement.
• High Availability Architecture Implemented: Availability Zones and region pairing enabled the client to meet a 99.99% uptime SLA for customer-facing systems.
• Scalable Network Design: The regional structure supports seamless expansion into new markets without requiring foundational changes.

Technologies Used

• Microsoft Azure Virtual Network (VNet): Enabled secure and scalable network segmentation.
• Availability Zones: Provided intra-region fault tolerance.
• Azure Region Pairing: Supported disaster recovery and business continuity.
• Azure Policy for Regulatory Compliance Enforcement: Ensured adherence to regulatory standards.
• Azure Monitor & Network Watcher: Facilitated performance tracking and anomaly detection.
• Custom ARM Templates for VNet Deployment: Automated and standardized infrastructure deployment.

Key Use Cases

This architecture is ideal for:

• Multinational organizations requiring compliance with regional data sovereignty laws.
• Businesses needing low-latency access for global users.
• Enterprises seeking high-availability and disaster recovery capabilities in cloud deployments.

Key Takeaways

This case study demonstrates the importance of strategic Azure VNet region selection to balance compliance, performance, and resiliency. By aligning VNet deployments with regulatory requirements, optimizing for user proximity, and leveraging Azure’s resiliency features, we delivered a secure, performant, and scalable architecture. AMJ Cloud Technologies remains committed to crafting cloud solutions that drive business success.

Ready to optimize your Azure VNet strategy? Contact us to explore how AMJ Cloud Technologies can help.

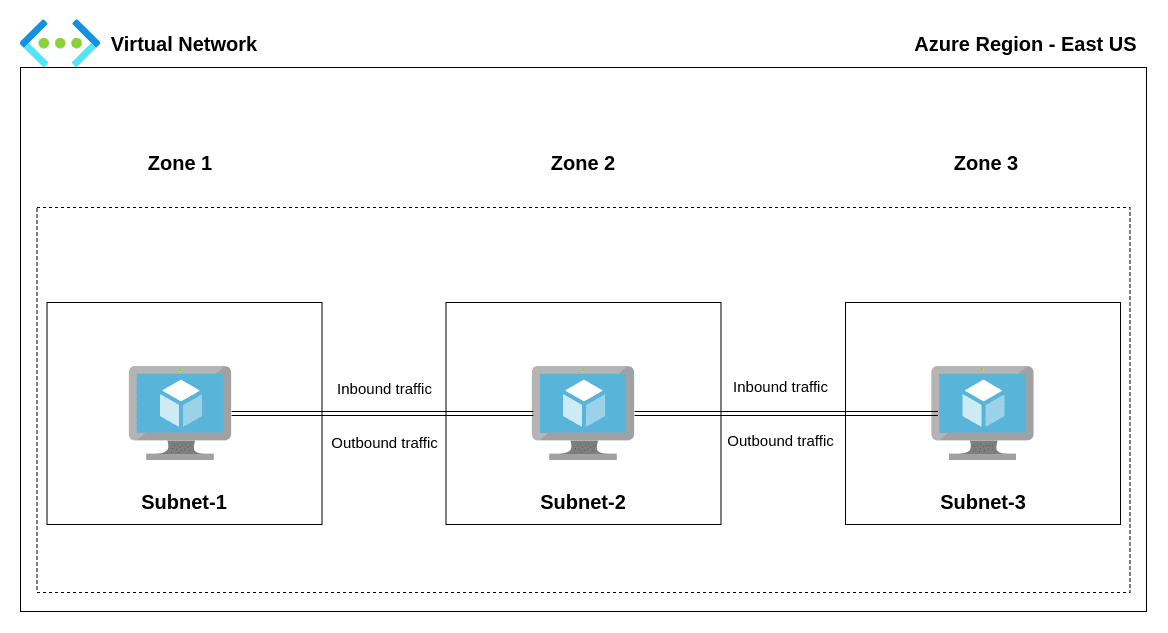

Architectural Diagram
