Enabling Secure Cross-VPC Communication with Google Cloud VPC Network Peering

AMJ Cloud Technologies partnered with a fast-growing SaaS provider in the healthcare sector to enable secure and efficient cross-VPC communication using Google Cloud VPC Network Peering. This case study demonstrates how we reduced latency, simplified architecture, and ensured compliance with strict regulatory requirements.

Situation

The client, a healthcare SaaS provider, managed multiple environments across Google Cloud Platform (GCP)—production, staging, analytics, and internal tooling. To maintain strong security boundaries and meet compliance requirements (e.g., HIPAA), each environment was deployed in a separate GCP project with its own VPC. While this ensured isolation, it created challenges for inter-service communication, particularly for shared services like authentication and logging, forcing teams to rely on public IPs or deploy duplicate services across environments.

Task

Our team was tasked with designing a solution to meet the following objectives:

• Enable secure, internal communication between services in different VPCs without using public IPs.
• Reduce latency and network costs associated with external traffic.
• Simplify the network architecture by eliminating complex VPN tunnels and firewall rules.
• Improve visibility and auditing of network traffic to meet compliance requirements.
• Ensure a scalable design to support future growth and additional environments.

The project was executed by a team of cloud architects and network engineers over a four-week timeline.

Action

To achieve these objectives, we implemented Google Cloud VPC Network Peering to enable secure, internal IP connectivity across isolated environments, focusing on security, efficiency, and compliance:

1. Established Direct Peering:

   • Set up Google Cloud VPC Network Peering between environment-specific VPCs (e.g., production ↔ staging, production ↔ shared services).
   • Designed peerings explicitly to avoid unnecessary exposure, ensuring only required connections were established.

2. Planned IP Addressing Scheme:

   • Created a non-overlapping, hierarchical CIDR block plan to ensure each VPC had a clearly defined IP space, avoiding routing conflicts.

3. Shared Only Necessary Routes:

   • Configured subnet routes to be shared automatically via VPC peering.
   • Selectively exported custom routes (e.g., those learned from BGP via on-premises networks) based on specific use-case requirements.

4. IAM-Based Access Controls:

   • Granted only trusted network administrators the ability to configure or modify VPC peerings using Cloud IAM roles, enforcing granular access control.

5. Monitoring and Auditing:

   • Integrated Cloud Monitoring and Cloud Logging to observe inter-VPC traffic patterns, detect anomalies, and log configuration changes for auditing.
   • Enabled real-time alerts for potential security or compliance issues.

6. Testing and Validation:

   • Conducted tests to validate secure internal communication, latency improvements, and compliance with HIPAA requirements.
   • Monitored traffic patterns and costs to ensure the solution met performance and budgetary goals.

The team collaborated with the client to monitor metrics during rollout and fine-tuned configurations to optimize security, performance, and scalability.

Result

The Google Cloud VPC Network Peering implementation delivered significant outcomes:

• Enabled Secure Internal IP Communication Across VPCs: Eliminated the need for external exposure, reducing the attack surface and enhancing security.
• Reduced Latency and Eliminated Egress Charges: Achieved measurable reductions in latency and avoided significant costs, particularly for data-intensive staging → production workloads.
• Replaced VPN Tunnels and Firewall Rules with VPC Peering: Simplified the architecture, reducing operational overhead and the risk of misconfiguration.
• Enhanced Compliance with HIPAA Through Separation and Visibility: Supported strict separation of duties and provided clear traffic visibility, meeting regulatory audit requirements.
• Future-Proof Design for Network Expansion: Addressed the non-transitive nature of VPC peering with well-documented relationships, allowing room for future growth.
• Operational Simplicity: Quick implementation with minimal disruption.

This solution has become a reference for AMJ Cloud Technologies’ secure networking projects, showcasing our expertise in Google Cloud compliance and performance architectures.

Technologies Used

• Google Cloud VPC Network Peering: Enabled secure cross-VPC communication.
• Cloud IAM (Granular Role Assignment): Enforced access control.
• Cloud Monitoring & Logging: Provided visibility and auditing.
• Custom Route Sharing Configuration: Managed selective route exports.
• Non-overlapping IP Addressing Strategy: Prevented routing conflicts.
• Manual Peering with Explicit Route Exports: Ensured precise connectivity.

Key Use Cases

This architecture is suitable for:

• SaaS providers with multiple isolated environments requiring secure inter-service communication.
• Organizations needing to reduce latency and costs while maintaining compliance.
• Businesses seeking scalable, simplified networking solutions in multi-project GCP environments.

Ready to enable secure cross-VPC communication? Contact us to explore how AMJ Cloud Technologies can help.

Key Takeaways

This case study highlights the impact of Google Cloud VPC Network Peering in enabling secure, efficient cross-VPC communication for a healthcare SaaS provider. By replacing a complex, siloed network architecture with a streamlined, secure design, we reduced latency, simplified operations, and ensured compliance. AMJ Cloud Technologies is dedicated to delivering practical cloud solutions for secure, scalable architectures.

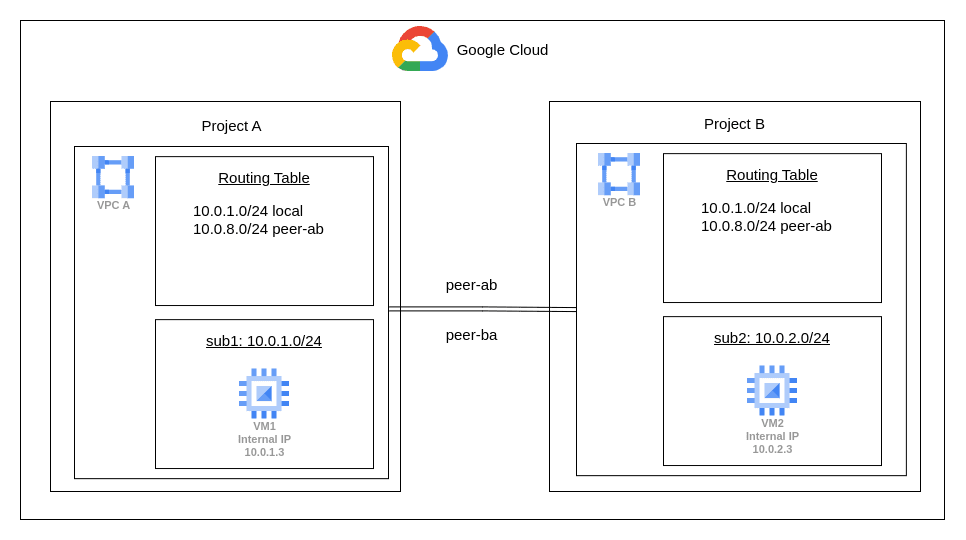

Architectural Diagram
